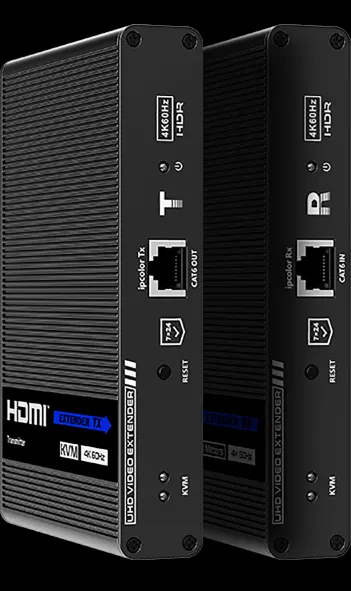

LENKENG KVM Point to Point Extender LKV676KVM
Roll over image to zoom in
€160.00

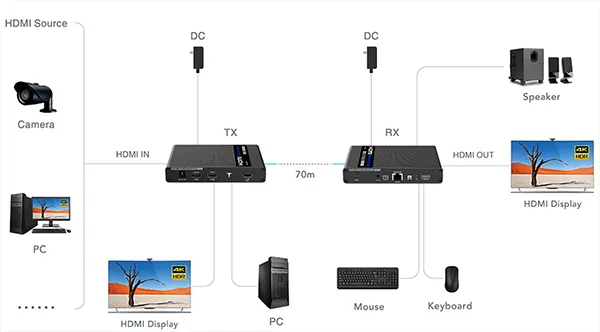

4K@60Hz HDMI2.0 point to point extender over Single CAT6/6A/7 Cable up to 70M, HDR10 Zero latency ipcolor technology, With KVM Function Transmitter and Receiver Kit
Parameters
Model LKV676KVM
CAT6/6A/7 ≤70m
Voltage/Current DC5V/2A
Electrostatic protection of the whole machine 1a Contact discharge level 3 1 b Air discharge level 3 Implementation of the standard: IEC61000-4-2
Power consumption TX<4W
Working temperature -20~60℃
HDMI™ compliance RX<4W
Storage temperature -30~ 70℃
HDCP compliance HDMI2.0 HDCP 2.2
Humidity (no condensation) 0~ 90% RH
HDMI™ resolution 3840×2160@24/25/30/50/60Hz
Dimension 150.0(L)x107.0(W)x28.4(H)mm
Supports audio formats LPCM/DTS-HD/DTS-Audio/Dolby TrueHD 7.1CH/Dolby Digital 5.1CH
Material Aluminium alloy material+crystal panel
Input and output DDC signal 0.7~ 1.2Vp-p(TMDS)
Treatment process Grit blast
Input and output DDC signal 5Vp-p(TTL)
Color Black
Input cable length ≤8m(AWG24)
Weight TX: 260g RX:260g
Output cable length ≤8m(AWG24)
